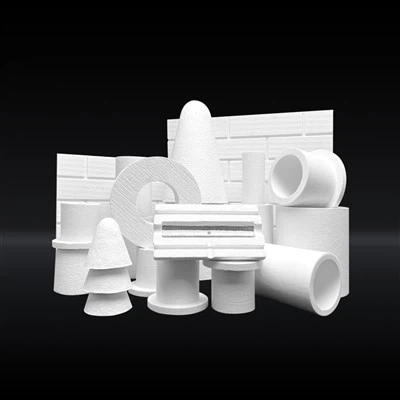

High-Temperature Insulation Profiled Ceramic Fiber Parts
High-Temperature Insulation Profiled Ceramic Fiber Parts are made from refractory ceramic fiber, attending inorganic and suitable organic binders. The mixture is vacuum processed into boards or formed shapes that keep good mechanical strength after heating.
Description
Product Introduction
High-Temperature Insulation Profiled Ceramic Fiber Parts are made of high quality ceramic fiber cotton as raw material and vacuum forming process. The special-shaped parts are to meet the specific production links of some industrial sectors required special-shaped products, its shape and size need to make special abrasive tools, according to the performance requirements of the product selection of custom binding agents and additives to meet the requirements of use.
All High-Temperature Insulation Profiled Ceramic Fiber Parts have low shrinkage over their service temperature range and maintain high insulation, light weight and impact resistance. Unburned material can easily be cut or machined. In the course of use, the product has good anti-wear and anti-spalling properties, and is not eroded by most molten metals.
Features and Applications
Main Features:
Smooth surface
Low impurity, and average bulk density and thickness
Excellent mechanical strength and structural strength
Low thermal conductivity
Low shrinkage
Resistant airspeed eroding
Applications:
Peep holes for the industrial furnace
Patch holes for thermometer
Nozzle and door sealing for the industrial furnace
Non-ferrous metal molten channel
Lining for pad,cap,of found,electrical equipment connect gaskets
Certifications
Product Parameter
|
Item |
STD |
HP |
HA |
ZA |
HTZ |
||||
|
Classification Temp (℃) |
1260 (2300F) |
1260 (2300F) |
1360 (2480F) |
1360 (2480F) |
1430 (2600F) |
||||
|
Working Temp (℃) |
≤1050 |
≤1100 |
≤1200 |
≤1200 |
≤1350 |
||||
|
Color |
Pure White |
Pure White |
Pure White |
Pure White |
Pure White |
||||
|
Bulk Density (Kg/m3) |
280---600 |
280---600 |
280---600 |
280-600 |
280---600 |
||||
|
Permanent Linear change (%) |
1000℃X24h≤ -3 |
1100℃X24h≤ -3 |
1200℃X24h≤ -3 |
1200℃X24h≤ -3 |
1350℃X24h≤ -3 |
||||
|
Thermal Conductivity (w/m.k) |
200C |
0.074 |
0.055 |
0.078 |
0.078 |
0.078 |
|||
|
400C |
0.092 |
0.073 |
0.102 |
0.102 |
0.102 |
||||
|
500C |
0.103 |
0.086 |
0.116 |
0.116 |
0.116 |
||||
|
600C |
0.127 |
0.105 |
0.12 |
0.12 |
0.12 |
||||
|
Tensile Strength (Mpa) |
0.50 |
0.50 |
0.50 |
0.5 |
0.50 |
||||
|
Chemical Composition (%) |
AL2O3 |
45-46 |
47-49 |
52-55 |
45-46 |
39-40 |
|||
|
AL2O3+SIO2 |
97 |
99 |
99 |
- |
－ |
||||
|
AL2O3+SIO2+ZrO2 |
－ |
－ |
－ |
99 |
99 |
||||
|
ZrO2 |
－ |
－ |
－ |
5-7 |
15-17 |
||||
|
Fe2O3 |
≤ 1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||
|
Na2O+K2O |
≤ 0.5 |
≤ 0.2 |
≤ 0.2 |
≤0.2 |
≤ 0.2 |
||||
|
Certificate |
CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH |
||||||||
