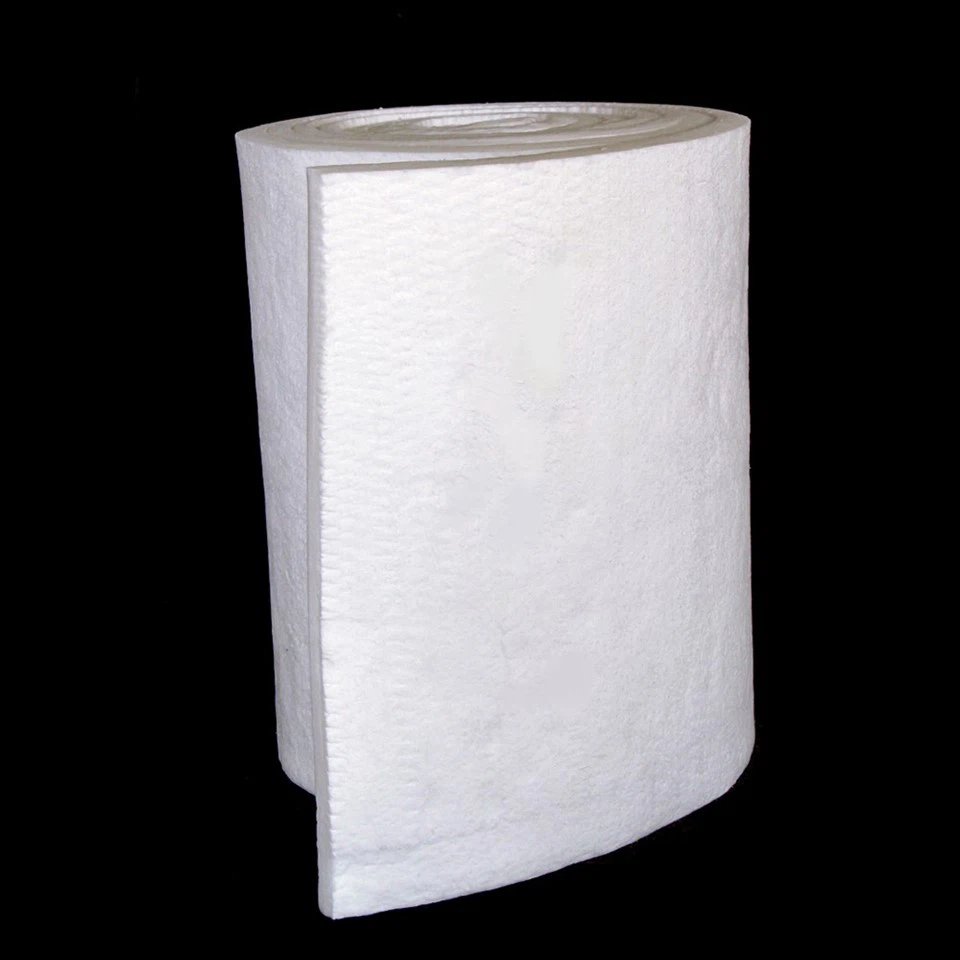

50mm Ceramic Fiber Blanket For Furnace
50mm Ceramic Fiber Blanket for Furnace is a high-strength, needled insulating blanket that is made from wool bulk. The combination of long spun fibers and needling operation produce tough, resilient, and strong blankets, which resist tearing both before and after heating.
Description
Product Introduction
Ceramic fiber blankets are made from refractory ceramic fibers and provide effective solutions to a wide range of thermal management problems. Utilizing our proprietary high-yield spinning technology, these products provide exceptional insulating properties, flexibility and elasticity.
ceramic wool is completely inorganic and available in a variety of temperature grades densities and sizes. A ceramic wool blanket can be folded, compressed, and encapsulated to produce modules.
Product Advantages
High tensile strength
Excellent mechanical strength and structural strength
Low thermal conductivity, low shrinkage, low density
excellent heat capacity
Good sound absorption
good thermal shock resistance
Application of ceramic fiber felt
Heat treatment furnace
Furnace door linings and seals
Vapor covers and seals
Furnace Hot Surface Repair
Furnace and ladle covers
Product Parameter
|
Item |
STD |
HP |
HA |
ZA |
HTZ |
||
|
Classification Temp (℃) |
1260 (2300F) |
1260 (2300F) |
1360 (2480F) |
1360 (2480F) |
1430 (2600F) |
||
|
Working Temp (℃) |
≤1050 |
≤1100 |
≤1200 |
≤1200 |
≤1350 |
||
|
Color |
Pure White |
Pure White |
Pure White |
Pure White |
Pure White |
||
|
Bulk Density (Kg/m3) |
64-160 |
64-160 |
96-160 |
96-160 |
96-160 |
||
|
Permanent Linear change (%) |
1000℃X24h≤ -3 |
1100℃X24h≤ -3 |
1200℃X24h≤ -3 |
1350℃X24h≤ -3 |
|||
|
Thermal Conductivity (w/m.k) |
400C |
0.095 |
0.095 |
0.114 |
0.114 |
0.122 |
|
|
500C |
0.123 |
0.123 |
0.135 |
0.135 |
0.153 |
||
|
600C |
0.158 |
0.158 |
0.191 |
0.191 |
0.184 |
||
|
Tensile Strength (Mpa) |
0.04-0.06 |
0.05-0.075 |
0.05-0.075 |
0.05-0.075 |
0.05-0.075 |
||
|
Chemical Composition (%) |
AL2O3 |
45-46 |
47-49 |
52-55 |
45-46 |
39-40 |
|
|
AL2O3+SIO2 |
97 |
99 |
99 |
－ |
－ |
||
|
AL2O3+SIO2+ZrO2 |
－ |
－ |
－ |
99 |
99 |
||
|
ZrO2 |
－ |
－ |
－ |
5-7 |
15-17 |
||
|
Fe2O3 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||
|
Na2O+K2O |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||
|
Size(mm) |
Length:3600 & 7200 &14640 Width:610 &1220 Thickness: 6-60; As customer's requirements. |
||||||
|
Package |
Plastic weaving bag and cartons |
||||||
|
Certificate |
CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH |
||||||
Certificate
FAQ
Q1: How can you control your quality?
A1: For each production process, SUNTHERM has a complete QC system for chemical composition and physical properties. After the production is completed, all the goods will be inspected and the quality certificate will be sent together with the goods if our customers need.
Q2: Are you factory?
A2: Yes, for sure, welcome to visit us and I will show you.
Q3: Do you provide free samples?
A3: Yes, free samples are available, but the buyer shall bear all the delivery cost.
