Refractory Ceramic Fiber Module
Refractory ceramic fiber module: 1260 standard /1260 high purity /1400 high alumina/1400 low zirconium/1400 zirconium containing ceramic fiber module.
Description
Product Introduction
SUNTHERM Refractory ceramic fiber module is a prefabricated component of ceramic (aluminum silicate) fiber needled blanket with different classification temperatures, which is generally referred to as "block" and "module". It can be divided into two types: no prefabricated anchor and prefabricated paving.
The ceramic wool module is white in color and regular in size, and can be directly fixed on the anchor nail of the steel plate of the furnace shell of the industrial Valley furnace. The fiber module has good fire-resistant and thermal insulation results, which improves the fire-resistant insulation of the egg furnace.
The physical property of heat promotes the progress of empty furnace masonry technology. The classification temperature is 1050-1600 ° C.
Product Feature
Excellent chemical stability;
Excellent thermal stability;
Excellent elasticity.
The fiber module is in the preloading state. After the furnace lining is built, the expansion of the ceramic fiber module makes the furnace lining seamless, and can compensate the shrinkage of the fiber furnace lining, so as to improve the thermal insulation performance of the fiber furnace lining. The overall performance is good.
Product Parameter
Item | STD Ceramic Fiber Module | |
Classification Temp(℃) | 1260 (2300F) | |
Working Temp (℃) | ≤1050 | |
Color | Pure White | |
Bulk Density（Kg/m3） | 160---260 | |
Permanent Linear change (%) | 1000℃X24h≤ -3 | |
Thermal Conductivity (w/m.k) | 400C | 0.09 |
500C | 0.119 | |
600C | 0.152 | |
Chemical Composition (%) | AL2O3 | 45—46 |
AL2O3+SIO2 | 97 | |
AL2O3+SIO2+ZrO2 | — | |
ZrO2 | — | |
Fe2O3 | ≤1.0 | |
Na2O+K2O | ≤0.5 | |
Size（mm） | Length:300—600;Height:150—300;Thickness:150-300;As customer's requirements. | |
Package | Cartons | |
Certificate | CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH | |
Product Application
Excellent chemical stability;
Excellent thermal stability;
Excellent elasticity, the module is in the preloading state, after the furnace lining pin is finished.
The expansion of ceramic fiber module makes the furnace lining seamless and can compensate the shrinkage of fiber furnace Village, so as to improve the thermal insulation performance of ceramic fiber module furnace lining, with good overall performance.
Product Certificate

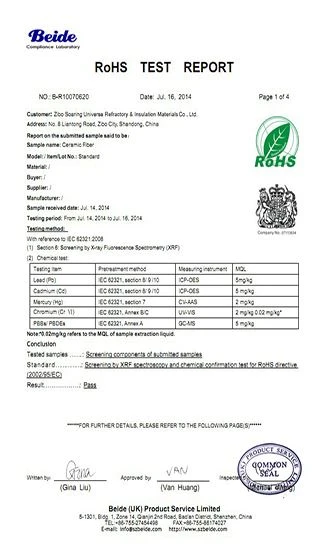

SUNTHERM has Official certifications including ISO, SGS, RoHS, ISO9001, CE and ASTM, etc.
