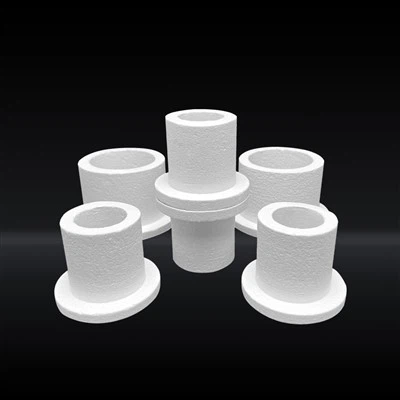

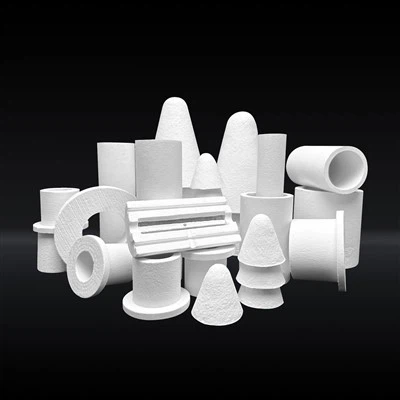

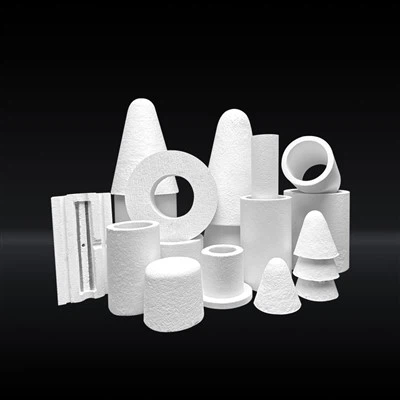

Alumina Ceramic Fiber Structural Parts
Alumina Ceramic Fiber Structural Parts, using high quality ceramic fiber cotton as raw materials, by vacuum forming process. All shaped products have low shrinkage over the temperature range in which they are used and maintain high thermal insulation, light weight and impact resistance.
Description
Product Introduction
The purpose of the development of Alumina Ceramic Fiber Structural Parts is to be made of rigidity with superior high temperature performance and self-supporting strength of the shaped products, each product according to its form and size needs to make a special mold, according to the performance requirements of the product, the selection of different binders and additives to meet the requirements of use. All Alumina Ceramic Fiber Structural Parts have low shrinkage over the temperature range in which they are used and maintain high thermal insulation, light weight and impact resistance.
Alumina Ceramic Fiber Structural Parts have strong texture and strong resistance to wind erosion; Seamless lining; Low heat storage, less heat loss; Direct contact with the flame to produce a hot surface; Excellent construction and installation performance; Excellent thermal shock resistance; High compressive strength, long service life; Excellent sound absorption.
Features and Applications
Main Features:
01.Can be made into various of complex shapes, high dimension accuracy.
02.Contact with flame directly,no odor and volatile gases at high temperatures
03.High mechanical strength,resistance to gas flow.
04.Low shrinkage,low thermal conductivity.
05.Excellent strength in high temperature and thermal stability.
Applications:
01.Peep holes for the industrial furnace
02.Patch holes for thermometer
03.Nozzle and door sealing for the industrial furnace
04.Non-ferrous metal molten channel
05.Lining for pad,cap,of found,electrical equipment connect gaskets
Certifications
Product Parameter
|
Item |
STD |
HP |
HA |
ZA |
HTZ |
||||
|
Classification Temp (℃) |
1260 (2300F) |
1260 (2300F) |
1360 (2480F) |
1360 (2480F) |
1430 (2600F) |
||||
|
Working Temp (℃) |
≤1050 |
≤1100 |
≤1200 |
≤1200 |
≤1350 |
||||
|
Color |
Pure White |
Pure White |
Pure White |
Pure White |
Pure White |
||||
|
Bulk Density (Kg/m3) |
280---600 |
280---600 |
280---600 |
280-600 |
280---600 |
||||
|
Permanent Linear change (%) |
1000℃X24h≤ -3 |
1100℃X24h≤ -3 |
1200℃X24h≤ -3 |
1200℃X24h≤ -3 |
1350℃X24h≤ -3 |
||||
|
Thermal Conductivity (w/m.k) |
200C |
0.074 |
0.055 |
0.078 |
0.078 |
0.078 |
|||
|
400C |
0.092 |
0.073 |
0.102 |
0.102 |
0.102 |
||||
|
500C |
0.103 |
0.086 |
0.116 |
0.116 |
0.116 |
||||
|
600C |
0.127 |
0.105 |
0.12 |
0.12 |
0.12 |
||||
|
Tensile Strength (Mpa) |
0.50 |
0.50 |
0.50 |
0.5 |
0.50 |
||||
|
Chemical Composition (%) |
AL2O3 |
45-46 |
47-49 |
52-55 |
45-46 |
39-40 |
|||
|
AL2O3+SIO2 |
97 |
99 |
99 |
- |
－ |
||||
|
AL2O3+SIO2+ZrO2 |
－ |
－ |
－ |
99 |
99 |
||||
|
ZrO2 |
－ |
－ |
－ |
5-7 |
15-17 |
||||
|
Fe2O3 |
≤ 1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||
|
Na2O+K2O |
≤ 0.5 |
≤ 0.2 |
≤ 0.2 |
≤0.2 |
≤ 0.2 |
||||
|
Certificate |
CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH |
||||||||
FAQ：
Q1:Can your company accept customization?
A1:We have our own factory and excellent technical team, and we accept OEM service.
Q2:What is your MOQ?
A2:We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
Q3: How long can I get the goods? How do you send the goods to my country?
A3: It usually takes about 8-30 working days. We work with large logistics companies to deliver goods to your address by air, rail or sea.
