High Aluminium Insulation Ceramic Fiber Module

Over the years, our company in line with the 'service, quality' enterprise purpose, strive to make the company stronger and bigger, contribute quality Fireproof ceramic fibre textile for eaf lining, high temperature Ceramic fiber composite module, Refractory Sealing Ceramic Fiber Bulk for the society and try to do our due obligations. We form a harmonious relationship in customer service, market competition, sales and support, which brings long-term competitive advantage to the enterprise. Modern logistics has become the third profit source of enterprises, which is an important source for enterprises to reduce costs and obtain competitive advantages. Strategic planning is an important means for enterprises to maintain market competitiveness and achieve sustainable development.

Product Introduction

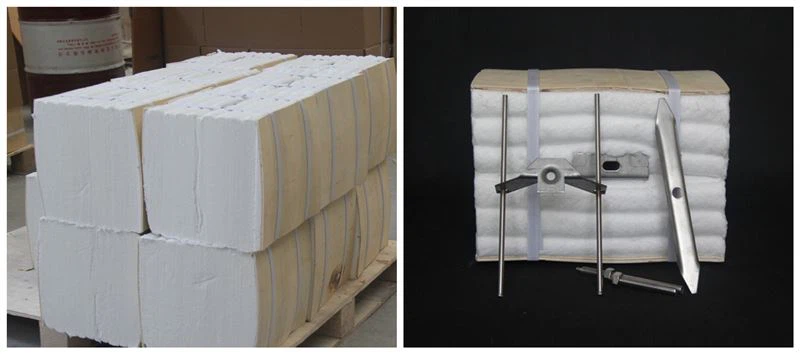

SUNTHERM A series of ceramic fiber folded module are processed according the fiber module structure, sized by special machine on the ceramic fiber needle blanket which is corresponding material.

In the course of processing, they should be maintained a certain proportional reduction, to ensure that it is compressed to form an integer set without joint between ceramic fiber folded blanket, after ceramic fiber folded module is built.

Product Parameter

Item			STD	HP	HA	ZA	HTZ
Classification Temp (℃)			1260 (2300F)	1260 (2300F)	1360 (2480F)	1360 (2480F)	1430 (2600F)
Working Temp (℃)			≤1050	≤1100	≤1200	≤1200	≤1350
Color			Pure White	Pure White	Pure White	Pure White	Pure White
Bulk Density (Kg/m3)			160-260	160-260	160-260	160-260	160-260
Permanent Linear change (%)			1000℃X 24h≤ -3	1100℃x24h≤ -3	1200℃ X 24h≤ -3		1350℃x24h≤ -3
Thermal Conductivity（w/m.k）		400C	0.09	0.09	0.101	0.101	0.118
		500C	0.119	0.119	0.120	0.120	0.149
		600C	0.152	0.152	0.175	0.175	0.172
Chemical Composition(％)	AL2O3		45—46	47—49	52—55	45—46	39—40
	AL2O3+SIO2		97	99	99	－	－
	AL2O3+SIO2+ZrO2		－	－	－	99	99
	ZrO2		－	－	－	5—7	15—17
	Fe2O3		≤ 1.0	≤0.2	≤0.2	≤0.2	≤0.2
	Na2O+K2O		≤ 0.5	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Size（mm）			Length:300 – 600; Height:150-300; Thickness:150-300 As customer's requirements.
Package			Cartons
Certificate			CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH

Product Highlight

SUNTHERM ceramic fiber module has many product highlights, such as good anti-stripping performance, excellent machining performance and excellent chemical stability. Also our module has anchor system for fast and easy installation.

Product Application

High aluminum ceramic fiber module can apply for petrochemical furnaces, cracking furnaces, steel industry furnace, annealing furnace and roller hearth furnace. Because of its own anchorage system, easy to install, can also be applied towaste recycling, combustion chamber and refining and petrochemical.

Product Process

In the process, a certain proportion of compression is maintained, in order to ensure modules expand to the different directions after completion of ceramic fiber folded module wall lining, to create mutual extrusion amongst modules and form a seamless whole unit.

Product Details

● Fiber Diameter: 3-5 um

● Thermal Conductivity: 0.085-0.18W/m.k

● Density (kg/m³): 160-260

● Color: Pure white

Customer Photos

The annual amount of ceramic fiber products is over 200,000 tons. And the products have been sold into Europe, North America, Middle East, South East Asia (Japan and Korea) etc. more than 80countries and areas. Welcome to visit at any time, we can arrange special transport, and help you to arrange all the visit affairs.

FAQ

Q1: Would you like to provide us free samples?

A1: Sure, we provide free samples, and the freight charges may be mutually agreed.

Q2: What kind terms of payment can be accepted?

A2: We can accept part of deposit, balance to be against the BL copy or by LC or other payment terms. It can also be discussed according to the situation of both parties.

Q3: What's your transport?

A3: Normally by sea. Urgently by air or by truck.

Q4: You are a manufacture or a trading company?

A4: We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.

Q5: Why choose SUNTHERM?

A5: Because we can provide you with more environmentally friendly materials, more cost savings, more convenient logistics and better service.

Our company's own brand High Aluminium Insulation Ceramic Fiber Module have been widely recognized and welcomed by most well-known customers. First-class quality and first-class service have always been our goal, and we will do our best to become a supplier that satisfies our customers. The company's standardized operation, scientific management, efficient, pragmatic and competent organization have laid a solid foundation for the company's future development.
