Product Introduction

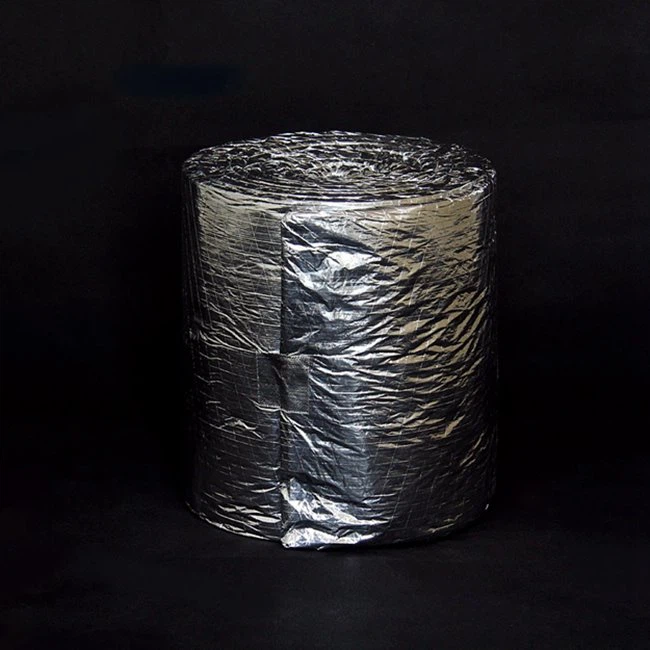

SUNTHERM Ceramic Fiber Blanket with Al Foil is on the basis of ceramic fiber blanket. Using a special adhesive, the aluminum foil is uniformly attached to the surface of the fiber blanket. As a layer of aluminum foil is added on the surface of the blanket, the heat transfer of the fiber blanket to the air is prevented effectively, and the radiant heat is reflected effectively. So the heat insulation performance of the aluminum foil blanket is greatly improved. And can eliminate the worry of skin allergy, at the same time to prevent moisture and dust plays an important role.

Product Parameter

Item			STD	HP	HA	ZA	HTZ
Classification Temp (℃)			1260 (2300F)	1260 (2300F)	1360 (2480F)	1360 (2480F)	1430 (2600F)
Working Temp (℃)			≤1050	≤1100	≤1200	≤1200	≤1350
Color			Pure White	Pure White	Pure White	Pure White	Pure White
Bulk Density (Kg/m3)			64-160	64-160	96-160	96-160	96-160
Permanent Linear change (%)			1000℃X24h≤ -3	1100℃X24h≤ -3	1200℃X24h≤ -3		1350℃X24h≤ -3
Thermal Conductivity (w/m.k)		400C	0.095	0.095	0.114	0.114	0.122
		500C	0.123	0.123	0.135	0.135	0.153
		600C	0.158	0.158	0.191	0.191	0.184
Tensile Strength (Mpa)			0.04-0.06	0.05-0.075	0.05-0.075	0.05-0.075	0.05-0.075
Chemical Composition (%)	AL2O3		45-46	47-49	52-55	45-46	39-40
	AL2O3+SIO2		97	99	99	－	－
	AL2O3+SIO2+ZrO2		－	－	－	99	99
	ZrO2		－	－	－	5-7	15-17
	Fe2O3		≤1.0	≤0.2	≤0.2	≤0.2	≤0.2
	Na2O+K2O		≤0.5	≤0.2	≤0.2	≤0.2	≤0.2
Size(mm)			Length:3600 & 7200 &14640 Width:610 &1220 Thickness: 6-60; As customer's requirements.
Package			Plastic weaving bag and cartons
Certificate			CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH

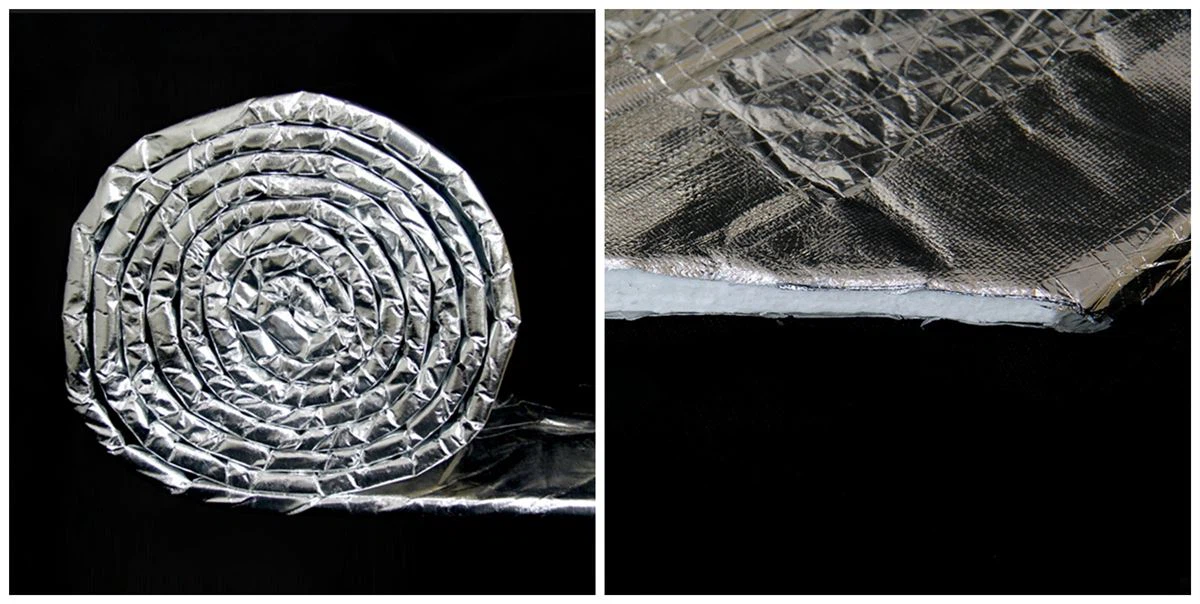

Product Details

Product Feature

Because the surface of ceramic fiber aluminum foil is attached to a layer of aluminum foil, not only has the characteristics of low thermal capacity, chemical stability and excellent thermal shock resistance of fiber blanket, but also can effectively moisture-proof, dust-proof, skin protection, prolong the service life.

Product Application

Aluminum foil blanket can be applied to the pipeline lining of petroleum refining and chemical reaction equipment, the heat preservation facilities of metallurgical industry's waste heat recovery coke oven, hot blast stove, CSP and other heating furnaces, and the overhead pipeline of high temperature and high pressure in the electric power industry.
