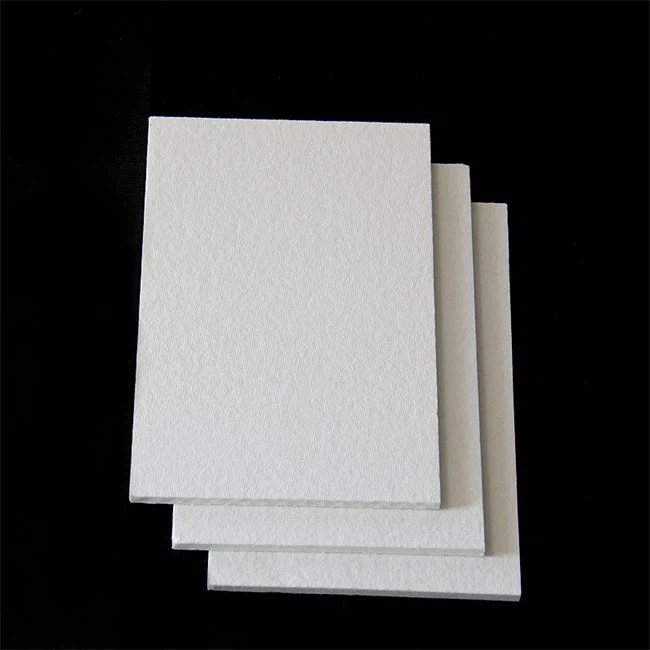

Inorganic Ceramic Fiber Board For Insulation

Name: China Customized Inorganic Ceramic Fiber Board For Insulation Suppliers, Factory - Wholesale Price - Soaring Universe Refractory
Brand: SUNTHERM
SKU: 169510989

Inorganic Ceramic fiber board, all inorganic binders are used in board forming, and there is no organic volatiles in use.

Send Inquiry

SUNTHERM PRODUCT CATALOG

Description

Product Introduction

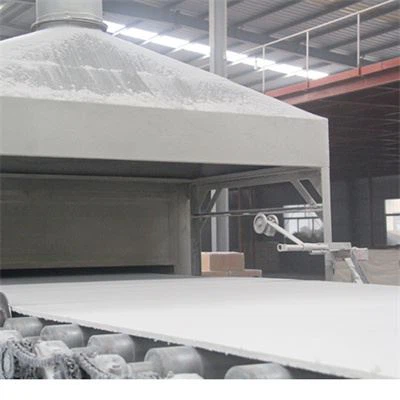

SUNTHERM Ceramic fiber board is made of ceramic fiber cotton of corresponding level, inorganic binder and a small amount of organic binder through vacuum forming process, and can withstand the high temperature of 1000 ℃ - 1350 ℃.

In some use scenarios of ceramic fiberboard, a small amount of organic binder in the board will smoke when burned. This is a normal phenomenon and will dissipate soon, which will not affect the performance and application of the product.

According to the use requirements of the scenarios not used by customers, they can be divided into the following three categories:

Inorganic board: it can be made according to the needs of customers. All inorganic binders are used in board forming, and there is no organic volatiles in use.

Hardened plate: according to the special use requirements of customers, the strength of the plate will be better if it is surface hardened or completely hardened.

Hydrophobic board: waterproof treatment can be carried out on the product surface according to the special needs of customers, and its hydrophobic rate is greater than 98%, which is suitable for use in some special places.

Product Parameter

Item			STD	HP		HA		ZA	HTZ
Classification Temp (℃)			1260 (2300F)	1260 (2300F)		1360 (2480F)		1360 (2480F)	1430 (2600F)
Working Temp (℃)			≤1050	≤1100		≤1200		≤1200	≤1350
Color			Pure White	Pure White		Pure White		Pure White	Pure White
Bulk Density (Kg/m3)			280---600	280---600		280---600		280-600	280---600
Permanent Linear change (%)			1000℃X24h≤ -3	1100℃X24h≤ -3		1200℃X24h≤ -3		1200℃X24h≤ -3	1350℃X24h≤ -3
Thermal Conductivity (w/m.k)		200C	0.074	0.055		0.078	0.078		0.078
		400C	0.092	0.073		0.102	0.102		0.102
		500C	0.103	0.086		0.116	0.116		0.116
		600C	0.127	0.105		0.12	0.12		0.12
Tensile Strength (Mpa)			0.50	0.50	0.50			0.5	0.50
Chemical Composition (%)	AL2O3		45—46	47—49	52—55			45-46	39—40
	AL2O3+SIO2		97	99	99			-	－
	AL2O3+SIO2+ZrO2		－	－	－			99	99
	ZrO2		－	－	－			5-7	15—17
	Fe2O3		≤ 1.0	≤0.2	≤0.2			≤0.2	≤0.2
	Na2O+K2O		≤ 0.5	≤ 0.2	≤ 0.2			≤0.2	≤ 0.2
Size(mm)			Length:600 & 900 & 1200; Width:300 & 600 & 1000 & 1200 Thickness: 3-100; As customers ‘requirements.
Package			Cartons or as customer’s requirement.
Certificate			CE,ISO9001-2008; ISO14001-2004,SGS, ROHS,SASO, REACH
